TKC-KD Open Loop Dismountable Hall Effect Current Transmitter

TKC-KD Open Loop Dismountable Hall Effect Current Transmitter

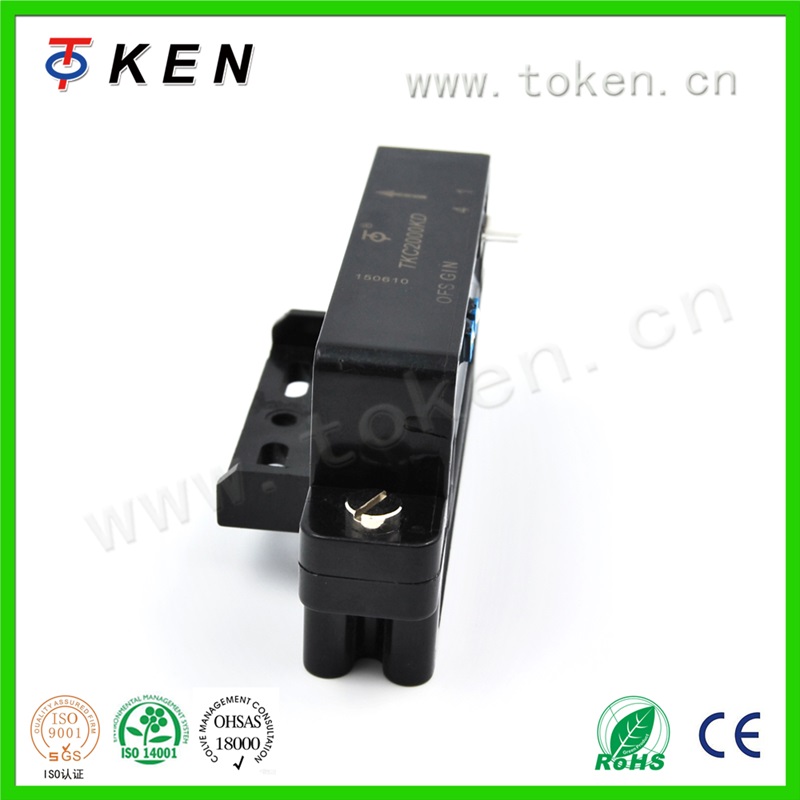

The TKC-KD series current transducer is an open loop device with a galvanic isolation between primary and secondary circuit, it provides accurate electronic measurement of AC or pulsed currents. This dismountable series current transducer has rated current input between 100A and 2000A, meansure range upto 2500A. It has 5% accuracy, very reliable. Available for appearance customization.

Technology :
Open loop Hall effect
Max. Nominal Value :
2000A
Max. Measuring Range :
2500A
Output Signal :
4~20mA
Supply Voltage :
±15 ±5%
Accuracy :
1%
Op. Temperature :
-40 °C / 85 °C
Mounting :
Aperture 64x16mm
Weight :
400g
MOQ :
100

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

Electrical data(Ta=25℃±5℃)

Type Parameter	TKC100KD	TKC300KD	TKC500KD	TKC800KD	TKC1000KD	TKC2000KD	Unit
Ratedcurrent(Ipn AC)	100	300	500	800	1000	2000	A
Measuringrange(Ip AC)	150	450	750	1200	1500	2500	A
Rated output （DC）	@Ip=Ipn 5±1%						V
Supply voltage	±15 ±5%						V
Power Consumption	+35,-20						mA
Offset voltage	@Ip=0 ±30						mV
Offset drift	@ -40～+85℃ ≤±1						mV/℃
output drift	@ -40～+85℃ ≤±1						mV/℃
Linearity	@Ip=0-±Ipn ≤0.5						%FS
Response time	≤200						mS
Bandwidth	@-3dB 40～6000						HZ
Galvanic isolation	@ 50HZ,AC,1min 5.0						KV

*Product updates, iterations, and parameter changes will not be notified separately

Applications

Variable speed drives

Uninterruptible power supplies (UPS)

Wave chopper

Battery supplied applications

Welding machine power

Telecommunication power

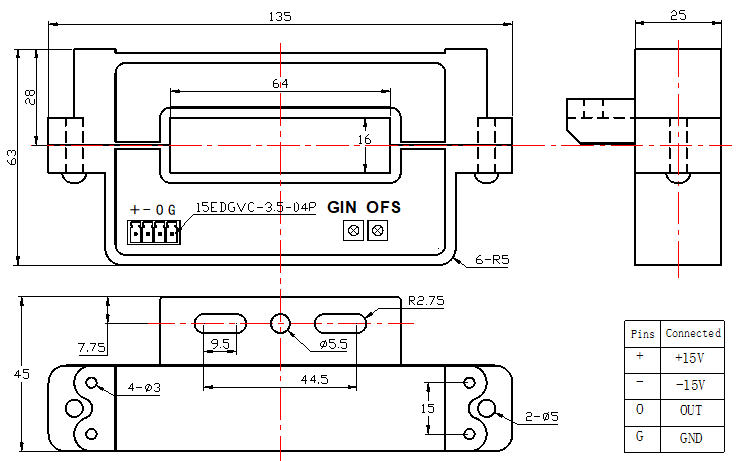

Mechanical dimension(for reference only)

Remarks：

1. All dimensions are in mm.

2. General tolerance ±1mm.

Directions for use

1. When the current will be measured goes through a transmitter, the voltage will be measured at the output end. (Note: The false wiring may result in the damage of the transmitter)

2. Customs can adjust output amplitude of the transmitter by needs.

3. Custom design in the different rated input current and the output voltage are available.

4. When installing, the overflow hole can be disassembled, it’s easy to use.

Further Note

L/T: Large quantity in 14 days

customized: Support OEM/ODM, Laser marking, Packing

Warranty: 2.5 years

After-sale service: within 24 hours

Packing and Shipment

Packing and Shipment
