TKC-BRFR12 Open Loop Hall Effect Current Sensor

The TKC-BRFR12 series current sensor is an open loop device provides accurate electronic measurement of DC, AC or pulsed currents. This series current sensor has rated current input between 50A and 600A, meansure range upto 900A, with wire, no potentiometer. It has 1% accuracy, very small size, very reliable. Available for appearance customization.

  • Technology :

    Open loop Hall effect
  • Max. Nominal Value :

    ±600A
  • Max. Measuring Range :

    ±900A
  • Output Signal :

    ±1V
  • Supply Voltage :

    +12±5%
  • Accuracy :

    1%
  • Op. Temperature :

    -40 °C / 105 °C
  • Mounting :

    Aperture 20.5x10.5mm
  • Weight :

    80g
  • MOQ :

    100
  • Description



Electrical data(Ta=25℃±5℃,RL=2KΩ,CL=10000PF)



Type
Parameter

TKC50

BRFR12

TKC100

BRFR12

TKC200

BRFR12

TKC300

BRFR12

TKC400

BRFR12

TKC500

BRFR12

TKC600

BRFR12

Unit

Ratedinput

±50

±100

±200

±300

±400

±500

±600

A

Measure range

±100

±200

±400

±600

±800

±900

±900

A

Rated output

@Ip=±Ipn                          ±1±1%

V

Zero voltage

@Ip=0                               2.5±0.5%

V

Reference voltage

2.5±0.5%

V

Supply voltage

+12±5%

V

Power Consumption

≤20

mA

Zero offset voltage

≤±20

mV

Magnetic offset

±15

±10

mV

Offset drift

≤±1.0

≤±0.5

mV/℃

output drift

≤±1.0

≤±0.5

mV/℃

Linearity

@Ip=0-±Ipn                              ≤1

%FS

Response time

@50A/μS,  10%-90%                      ≤3

μS

Bandwidth

@DC,(-3dB)                              25

KHz

Galvanic isolation

@ 50HZ,AC,1min                          2.5

KV





 *Product updates, iterations, and parameter changes will not be notified separately



Applications



AC variable speed drives

Static converters for DC motor drives

Variable speed drives

Power supplies for welding applications

Battery supplied applications

Uninterruptible Power Supplies (UPS)

Switched Mode Power Supplies(SMPS)

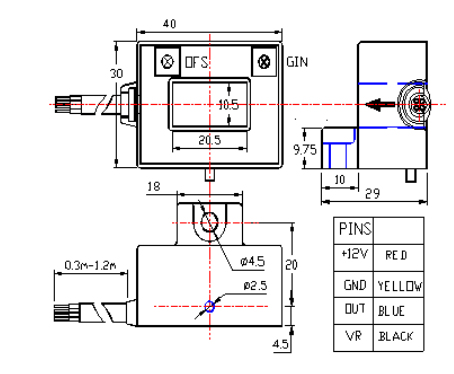

Mechanical dimension(for reference only)





Remarks:

1. All dimensions are in mm.

2. General tolerance ±1mm.



Directions for use



1. When the current will be measured goes through a sensor, the voltage will be measured at the output end.

(Note: The false wiring may result in the damage of the sensor)

 2. Customs can adjust Output amplitude of the sensor by needs.

3. Custom design in the different rated input current and the output voltage are available.



Further Note



L/T: Large quantity in 14 days

customized: Support OEM/ODM, Laser marking, Packing

Warranty: 2.5 years

After-sale service: within 24 hours
