TC-LTAD2420 Current Transmitter

TC-LTAD2420 Current Transmitter

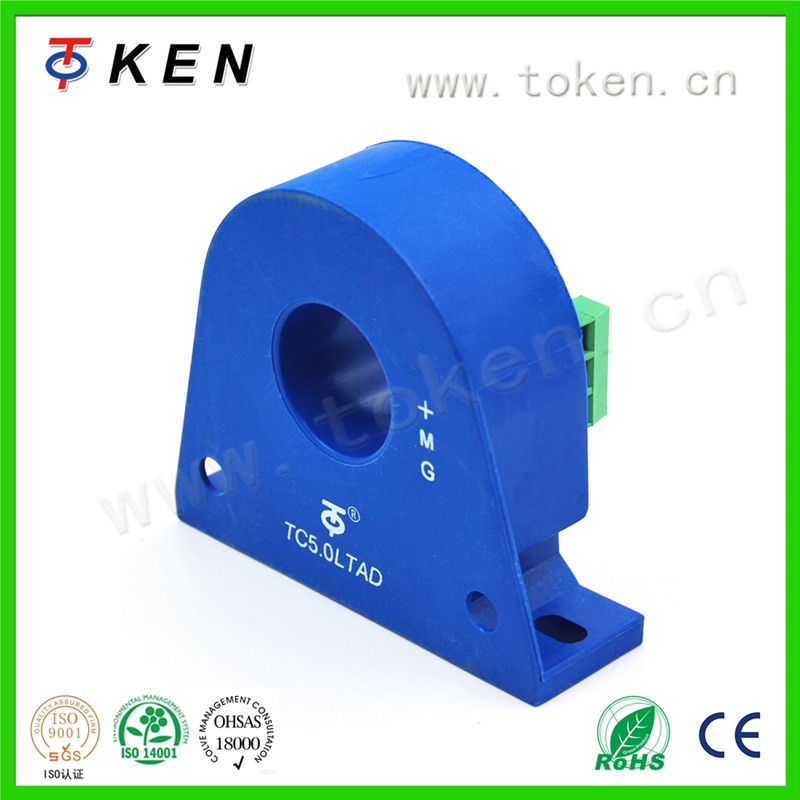

The TKC-LTAD2420 series current transducer is an open loop device with a galvanic isolation between primary and secondary circuit, it provides accurate electronic measurement of AC or pulsed currents. This dismountable series current transducer has rated current input between 0.3A and 100A, meansure range upto 200A. It has 5% accuracy, very reliable. Available for appearance customization.

Technology :
Open loop Hall effect
Max. Nominal Value :
100A
Max. Measuring Range :
200A
Output Signal :
0~20mA
Supply Voltage :
+24V ±5%
Accuracy :
1%
Op. Temperature :
-40 °C / 105°C
Mounting :
Aperture 20.2mm
Weight :
90g
MOQ :
100

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

Electrical data(Ta=25℃±5℃)

Type Parameter	TC0.3 LTAD 2420	TC0.5 LTAD 2420	TC1.0 LTAD 2420	TC2.0 LTAD 2420	TC5.0 LTAD 2420	TC10 LTAD 2420	TC20 LTAD 2420	TC50 LTAD 2420	TC100 LTAD 2420	Uint
Ratedcurrent(IpnAC)	0.3	0．5	1．0	2.0	5.0	10	20	50	100	A
Measuringrange(Ip AC)	0.6	1．0	2．0	4.0	10	20	40	100	200	A
Turns ratio(Np/Ns)	1：200	1：200	1：200	1:200	1:500	1:1000	1:1000	1:2000	1:2000	T
Rated output (Io DC)	@Ip=0-Ipn AC 0～20±1.0%									mA
Supply voltage	+24V ±5%									V
Power consumption	≤20+IpX(Np/Ns)									mA
Zero current	@Ip=0 0±0.1									mA
Zero drift	@ -40～85℃ ≤±0.05									mA/℃
Linearity	@ Ip=±Ipn ≤0.5									%FS
Response time	≤200									mS
Frequency	@-3dB 40～1000									Hz
Galvanic isolation	@ 50HZ， AC ，1min 2.5									KV

*Product updates, iterations, and parameter changes will not be notified separately

Applications

Variable speed drives

Welding machine

Battery supplied applications

Uninterruptible Power Supplies (UPS)

Electrochemical

Mechanical dimension(for reference only)

Remarks：

1. All dimensions are in mm.

2. General tolerance ±1mm.

Directions for use

1.When the current will be measured goes through a transmitter, the voltage will be measured at the output end.

(Note: The false wiring may result in the damage of the transmitter).

2. Customs can adjust output amplitude of the transmitter by needs.

3. Custom design in the different rated input current and the output current available .

urther Note

L/T: Large quantity in 14 days

customized: Support OEM/ODM, Laser marking, Packing

Warranty: 2.5 years

After-sale service: within 24 hours

Packing and Shipment

Packing and Shipment

Hot Tags : Split-Core Current Transducer Dismountable Current Transducer 200A Current Transducer Open Loop Current Transducer OEM Split-Core Current Transducer Split-Core DC Current Transducer
