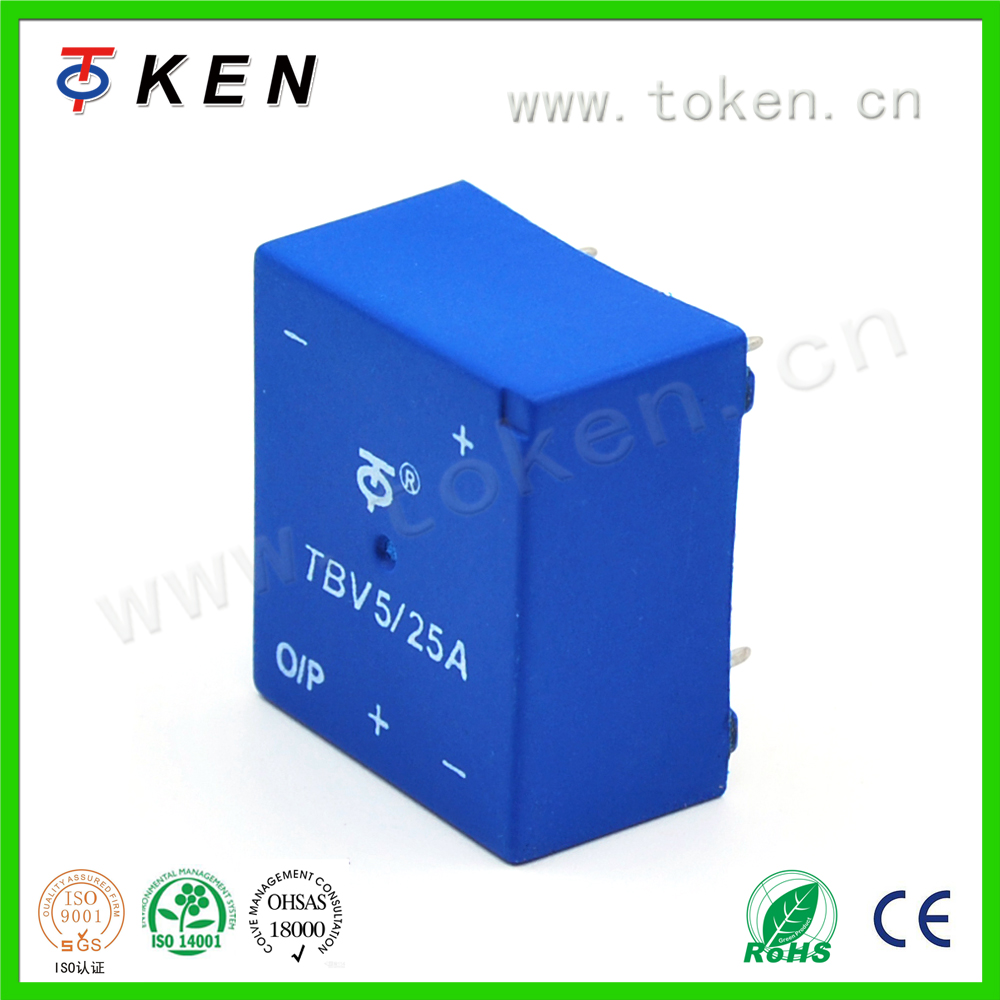

TBV5/25A 10/25A Series Hall Effect Voltage Sensor

5mA Voltage Sensor
Hall Effect Voltage Sensor
10mA Voltage Sensor
Closed Loop Voltage Sensor

TBV5/25A 10/25A Series Hall Effect Voltage Sensor

TBV5/25A，10/25A series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. This series voltage sensor has rated current input in 5mA and 10mA, meausre upto 14mA. Considering resistance of primary coil and electrical isolation within measure range, this sensor is suitable for measuring voltage. It has 0.5% accuracy, very small, very reliable. Available for appearance customization.

  • Technology :

    Closed loop Hall effect

  • Max. Nominal Value :

    5mA, 10mA

  • Max. Measuring Range :

    7mA, 14mA (1.25KV)

  • Output Signal :

    ±25mA

  • Supply Voltage :

    ±15V ±5%

  • Accuracy :

    0.5%

  • Op. Temperature :

    -40 °C / 85 °C

  • Mounting :

    PCB

  • Weight :

    20g

  • MOQ :

    40
Inquiry now
  • Description



 Electrical data (Ta=25℃±5℃)



Type
Parameter

TBV5/25A

TBV10/25A

Unit

Rated input (Ipn)

±5

±10

mA

Measure range(Ip)

±7

±14

mA

Turns ratio(Np/Ns)

5000:1000

2500:1000

T

Primary coil resister

650

200

Ω

Secondary coil resister

110

110

Ω

Measure resister

±15V  @(±5)±10mAmax    100(min)  350(max)
       @(±7)±14mAmax    100(min)  190(max)

Ω

Rated output (Isn)

@Ip=±Ipn             ±25±0.5%

mA

Supply voltage

±15±5%

V

Power consumption

 20+IpX(Np/Ns)

mA

Zero offset current

@Ip=0                     ±0.2

mA

Offset current drift

@ -40℃～+85℃        ≤±0.5（Typ）, ≤±0.7（Max）,

mA

Response time

40

µs

Linearity

@Ip=0-±Ipn               ≤0.2

%FS

Galvanic isolation

@ 50HZ,AC,1min             2.5

KV



 Applications



AC variable speed drives and servo motor drives

Static converters for DC motor drives

Variable speed drives

Power supplies for welding applications

Battery supplied applications

Uninterruptible Power Supplies (UPS)

Switched Mode Power Supplies(SMPS)



 Mechanical dimension (for reference only)



Remarks：

1. All dimensions are in mm.

2. General tolerance ±1mm



 Directions for use



1. The accuracy of sensor will be the best when the current passes through resister R1 and becomes the rated primary current, and therefore the current to be measured by sensor should comply with the primary current 10mA.

2.  For example, VIN=250V:

（Accuracy ）=±0.8%ofVIN（＠Ta=+25℃）                   a) R1=25KΩ/10W,IP =10mA

（Accuracy ）=±1.6%ofVIN（＠Ta=+25℃）                   b) R1=50KΩ/ 5W,IP =5mA

3. Considering resistance of primary coil (compared with R1 and temperature difference kept as low as possible) and electrical isolation within measure range (recommended), this sensor is suitable for measuring voltage.



 Further Note



L/T: Large quantity in 14 days

customized: Support OEM/ODM, Laser marking, Packing

Warranty: 2.5 years

After-sale service: within 24 hours
