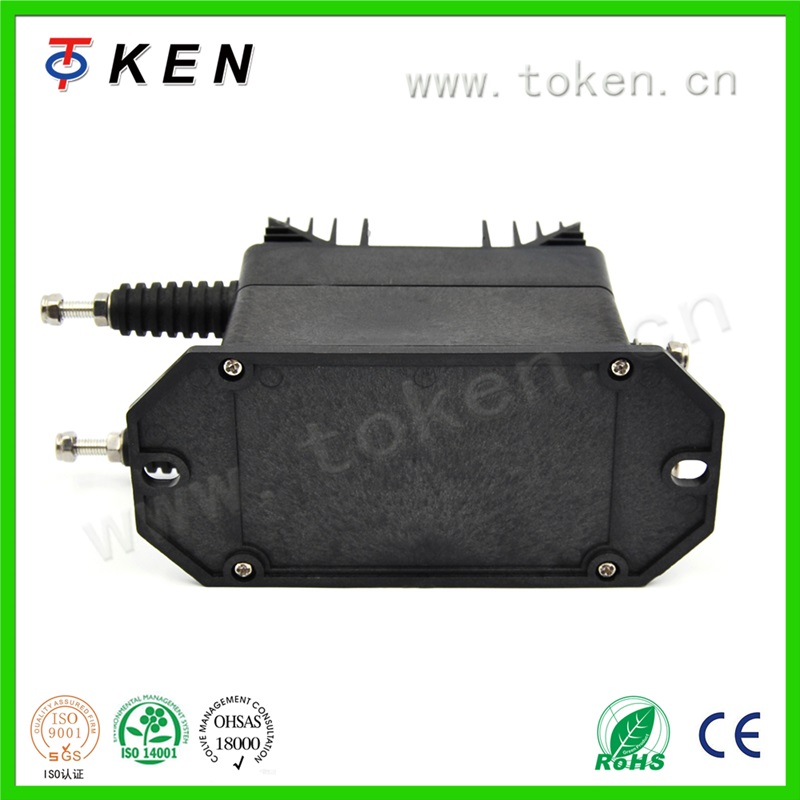

TBV-LV5 Hall Effect Voltage Sensor

TBV-LV5 Hall Effect Voltage Sensor

TBV-LV5 series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. The output from the voltage sensor can be expressed as a voltage by passing it through a resister. Input voltage can be expressed as a current by passing it through a input resister. This series voltage sensor has rated voltage input between±200and ±6000v It has 0.5% accuracy, very reliable. Available for appearance customization.

Technology :
Closed loop Hall effect
Max. Nominal Value :
±6000V
Max. Measuring Range :
±9000V
Output Signal :
±5V
Supply Voltage :
±15±3%
Accuracy :
0.5%
Op. Temperature :
-40 °C / 105 °C
Mounting :
PCB
Weight :
850g
MOQ :
100

Inquiry now

RELATED PRODUCTS

TBV10/20X Hall Effect Voltage Sensor

TBV10/20X series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. This series voltage sensor has rated current input in 10mA, upto 20mA. Considering resistance of primary coil and electrical isolation within measure range, this sensor is suitable for measuring voltage. It has 0.5% accuracy, very small, very reliable. Available for appearance customization.

TBV5/25A 10/25A Series Hall Effect Voltage Sensor

TBV5/25A，10/25A series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. This series voltage sensor has rated current input in 5mA and 10mA, meausre upto 14mA. Considering resistance of primary coil and electrical isolation within measure range, this sensor is suitable for measuring voltage. It has 0.5% accuracy, very small, very reliable. Available for appearance customization.

TBV-AV 0.5% Accuracy Hall Effect Voltage Sensor

TBV-AV series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. This series voltage sensor has rated voltage input between 50V and 1000VA, meausre upto 2000V. It has 0.5% accuracy, very reliable. Available for appearance customization.

TBV-A25 Hall Effect Voltage Sensor

TBV-A25 series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. The output from the voltage sensor can be expressed as a voltage by passing it through a resister. Input voltage can be expressed as a current by passing it through a input resister. This series voltage sensor has rated voltage input between 50V and 1000VA, meausre upto 2000V. It has 0.5% accuracy, very reliable. Available for appearance customization.

TBV05/10ASR3.3 Hall Effect Voltage Sensor

TBV05/10ASR3.3 series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. The output from the voltage sensor can be expressed as a voltage by passing it through a resister. Input voltage can be expressed as a current by passing it through a input resister. This series voltage sensor has rated voltage input between±5.0or ±10mA It has 0.5% accuracy, very reliable. Available for appearance customization.

TBV-ASR5 Hall Effect Voltage Sensor

TBV-ASR5 series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. The output from the voltage sensor can be expressed as a voltage by passing it through a resister. Input voltage can be expressed as a current by passing it through a input resister. This series voltage sensor has rated voltage input between±5.0or ±10mA It has 0.5% accuracy, very reliable. Available for appearance customization.

TBV-ASR12 Hall Effect Voltage Transmitter

TBV-ASR12 series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. The output from the voltage sensor can be expressed as a voltage by passing it through a resister. Input voltage can be expressed as a current by passing it through a input resister. This series voltage sensor has rated voltage input between±50and ±500V It has 0.5% accuracy, very reliable. Available for appearance customization.

TBV-ASR24 Hall Effect Voltage Transmitter

TBV-ASR24 series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. The output from the voltage sensor can be expressed as a voltage by passing it through a resister. Input voltage can be expressed as a current by passing it through a input resister. This series voltage sensor has rated voltage input between±50and ±500vIt has 0.5% accuracy, very reliable. Available for appearance customization.

TBV-AS12 Hall Effect Voltage Transmitter

TBV-AS12 series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. The output from the voltage sensor can be expressed as a voltage by passing it through a resister. Input voltage can be expressed as a current by passing it through a input resister. This series voltage sensor has rated voltage input between±50and ±500v It has 0.5% accuracy, very reliable. Available for appearance customization.

TBV-AS24 Hall Effect Voltage Transmitter

TBV-AS24 series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. The output from the voltage sensor can be expressed as a voltage by passing it through a resister. Input voltage can be expressed as a current by passing it through a input resister. This series voltage sensor has rated voltage input between±50and ±500v It has 0.5% accuracy, very reliable. Available for appearance customization.

TBV-AL25Hall Effect Voltage Sensor

TBV-AL25 series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. The output from the voltage sensor can be expressed as a voltage by passing it through a resister. Input voltage can be expressed as a current by passing it through a input resister. This series voltage sensor has rated voltage input between±300and ±1000v It has 0.5% accuracy, very reliable. Available for appearance customization.

TBV-AJ25 Hall Effect Voltage Sensor

TBV-AJ25 series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. The output from the voltage sensor can be expressed as a voltage by passing it through a resister. Input voltage can be expressed as a current by passing it through a input resister. This series voltage sensor has rated voltage input between±100and ±2000v It has 0.5% accuracy, very reliable. Available for appearance customization.

TBV10/50LVA Mode Hall Effect Voltage Sensor

TBV10/50LVA series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. This series voltage sensor has rated voltage input between 50V and 1000VA, meausre upto 2000V. It has 0.5% accuracy, very reliable. Available for appearance customization.

TBV-LV Hall Effect Voltage Sensor

TBV-LV series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. The output from the voltage sensor can be expressed as a voltage by passing it through a resister. Input voltage can be expressed as a current by passing it through a input resister. This series voltage sensor has rated voltage input between±100and ±5000v It has 0.5% accuracy, very reliable. Available for appearance customization.

TBV-LV5 Hall Effect Voltage Sensor

TBV-ADA12 Hall Effect Voltage Transmitter

TBV-ADA12 series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. The output from the voltage sensor can be expressed as a voltage by passing it through a resister. Input voltage can be expressed as a current by passing it through a input resister. This series voltage sensor has rated voltage input between±50and ±500v It has 0.5% accuracy, very reliable. Available for appearance customization.

TBV-ADA24 Hall Effect Voltage Transmitter

TBV-ADA24 series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. This series voltage sensor has rated voltage input between 50V and 1000VA, meausre upto 1000V. It has 0.5% accuracy, very reliable. Available for appearance customization.

TBV-ADA1220 Hall Effect Voltage Transmitter

TBV-ADA1220 series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. This series voltage sensor has rated voltage input between 50V and 1000VA, meausre upto 1000V. It has 0.5% accuracy, very reliable. Available for appearance customization.

TBV-ADA2420 Hall Effect Voltage Transmitter

TBV-ADA2420 series voltage sensor is a closed loop device galvanic isolation between primary and secondary circuit, it can measure DC, AC and pulse voltage. The output from the voltage sensor can be expressed as a voltage by passing it through a resister. Input voltage can be expressed as a current by passing it through a input resister. This series voltage sensor has rated voltage input between±50or ±500V It has 0.5% accuracy, very reliable. Available for appearance customization.

More products uploading
