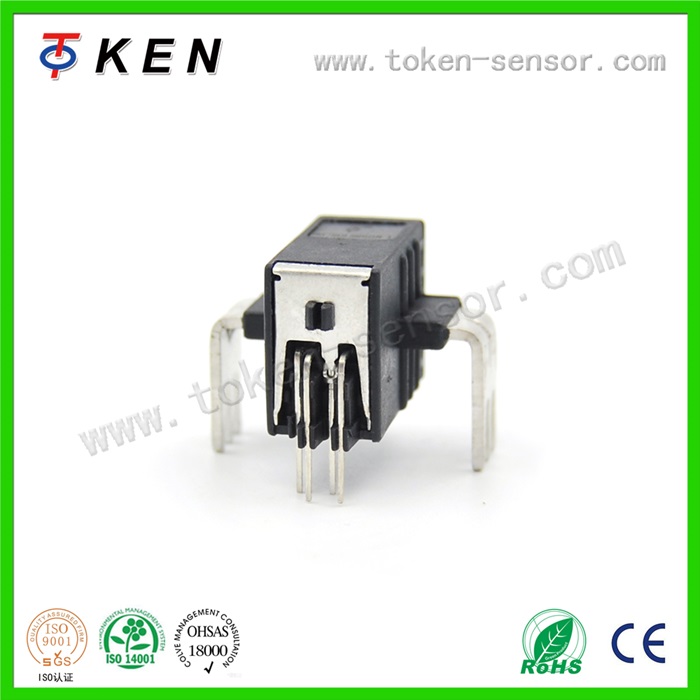

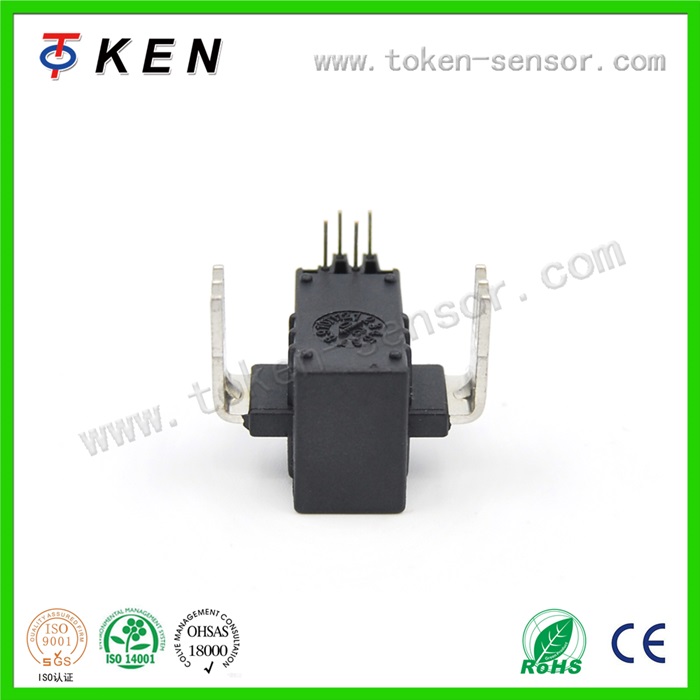

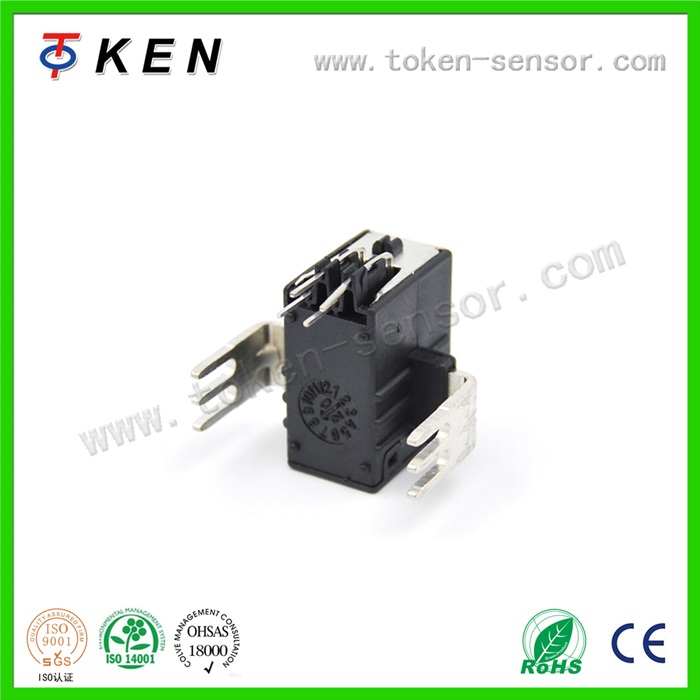

TBC-LAS5R508 series current sensor provides accurate electronic measurement of DC, AC or pulsed currents.This series current sensor has rated current input between ±6and ±50A, meansure range upto ±125A. It has 0.5% accuracy, very small size, very reliable. Available for appearance customization.
Technology :
Closed loop Hall effectMax. Nominal Value :
±50AMax. Measuring Range :
±125AOutput Signal :
±0.8VSupply Voltage :
+5±5%Accuracy :
0.5%Op. Temperature :
-40 °C / ±105°CMounting :
PCBWeight :
12gMOQ :
100
|
Electrical data(Ta=25℃±5℃, RL=10KΩ, CL=10nF) |
|
Type Parameter |
TBC06 LSR508 |
TBC10 LSR508 |
TBC15 LSR508 |
TBC20 LSR508 |
TBC25 LSR508 |
TBC30 LSR508 |
TBC32 LSR508 |
TBC40 LSR508 |
TBC50 LSR508 |
Unit |
|
|
Rated input (Ipn) |
±6 |
±10 |
±15 |
±20 |
±25 |
±30 |
±32 |
±40 |
±50 |
A |
|
|
Measuring ran(Ip) |
±15 |
±25 |
±37.5 |
±50 |
±62.5 |
±75 |
±80 |
±100 |
±125 |
A |
|
|
Turns (Np/Ns) |
1:1200 |
1:1000 |
1:1125 |
1:1000 |
1:1250 |
1:1125 |
1:1200 |
1:1000 |
1:1000 |
T |
|
|
Internal resister |
40.0 |
20.0 |
15.0 |
10.0 |
10.0 |
7.5 |
7.5 |
5.0 |
4.0 |
Ω |
|
|
Rated output |
@ Ip=±Ipn ±0.8±0.5% |
V |
|||||||||
|
Output rsistance |
≤20 |
Ω |
|||||||||
|
Size of primarypins |
□ 6.28 ×1.0 |
mm |
|||||||||
|
Supply voltage |
+5±5% |
V |
|||||||||
|
Powerconsumption |
≤15+Ip/Ns |
mA |
|||||||||
|
Reference voltage |
+2.5±0.5%(Output) |
V |
|||||||||
|
Vrefinternalresistresistor |
200 |
Ω |
|||||||||
|
Vrefexternalrangeresistor |
2.0-2.8(Input) |
V |
|||||||||
|
Zero voltage |
@ Ip=0 +2.5±0.5% |
V |
|||||||||
|
Offset drift |
@ -40～+105℃ ≤±0.1 |
mV/℃ |
|||||||||
|
output drift |
@ -40～+105℃ ≤±0.1 |
mV/℃ |
|||||||||
|
Linearity |
@ Ip=0-±Ipn ≤0.1 |
%FS |
|||||||||
|
Total accuracy |
≤±1.0 |
% |
|||||||||
|
accurately followed |
＞50 |
A/µS |
|||||||||
|
Response time |
@ Ip=Ipn, 50 A/µS ,10%-90% ＜1.0 |
µS |
|||||||||
|
Bandwidth |
@-3dB DC±100 |
KHz |
|||||||||
|
Galvanic isolation |
@ 50HZ,AC,1min 3.0 |
KV |
|||||||||
*Product updates, iterations, and parameter changes will not be notified separately
|
Applications |
Variable speed drives
Welding machine
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical
Solar inverters
|

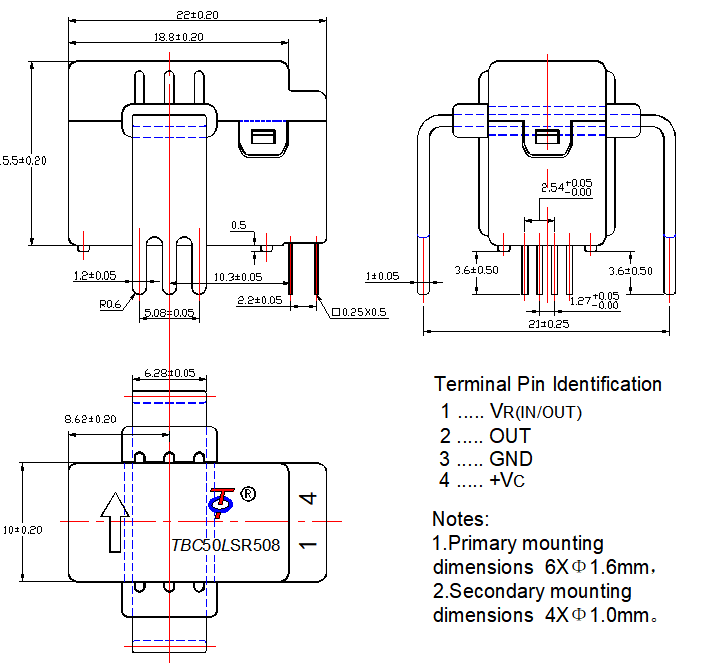

Mechanical dimension(for reference only) |
Remarks：
1. All dimensions are in mm.
2. General tolerance ±1mm.
|
Directions for use |
1.When the current will be measured goes through a sensor ,the voltage will be measured at the output end.
(Note: The false wiring may result in the damage of the sensor).
2. Custom design in the different rated input current and the output voltage available.
|
Further Note |
L/T: Large quantity in 14 days
customized: Support OEM/ODM, Laser marking, Packing
Warranty: 2.5 years
After-sale service: within 24 hours
|
