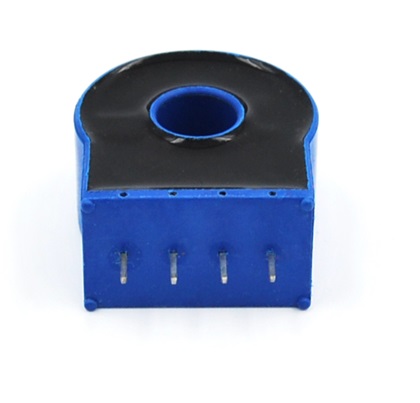

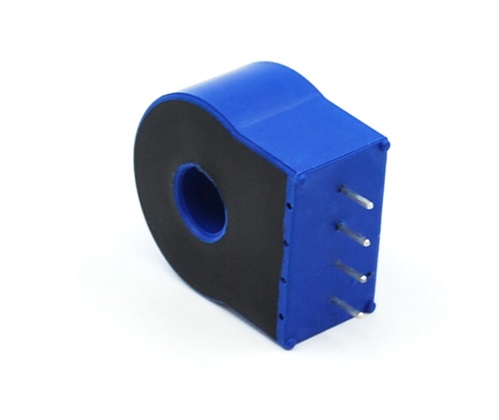

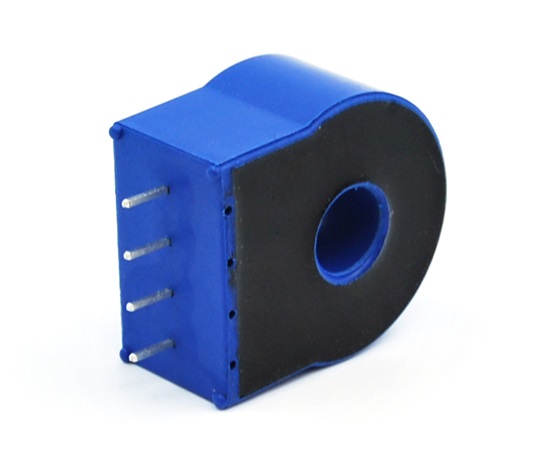

TBC-ECS565 Closed Loop Hall Effect Current Sensor

TBC-ECS565 Closed Loop Hall Effect Current Sensor

TBC-ECS565 series current sensor provides accurate electronic measurement of DC, AC or pulsed currents. This series current sensor has rated current input between ±10and ±100 meansure range upto ±230A. It has 0.5% accuracy, very small size,very reliable. Available for appearance customization.

Technology :
Closed loop Hall effect
Max. Nominal Value :
±100A
Max. Measuring Range :
±230A
Output Signal :
±0.625V
Supply Voltage :
+5±2.0%
Accuracy :
0.5%
Op. Temperature :
-40 °C / ±105°C

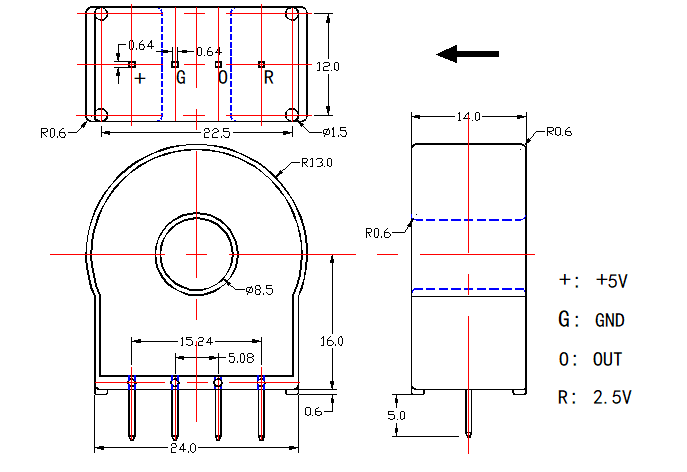

Mounting :
Aperture8.5mm
Weight :
15g
MOQ :
100

Inquiry now
