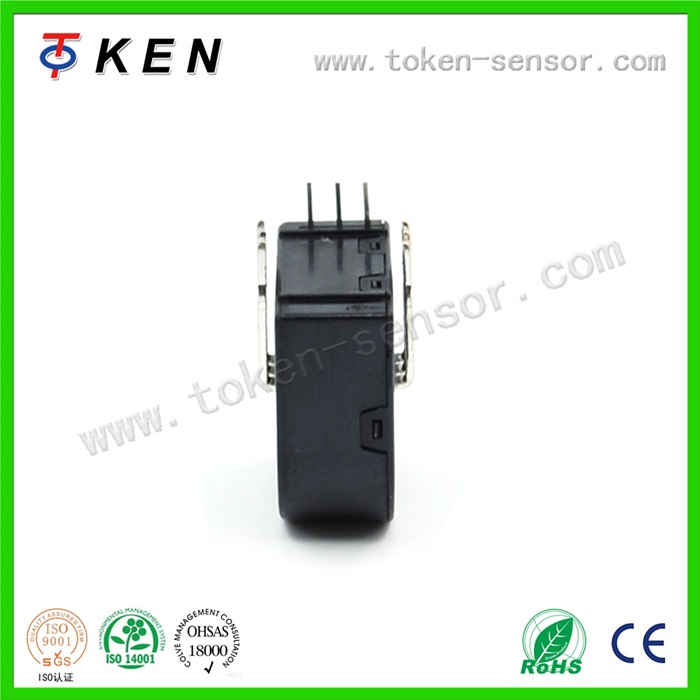

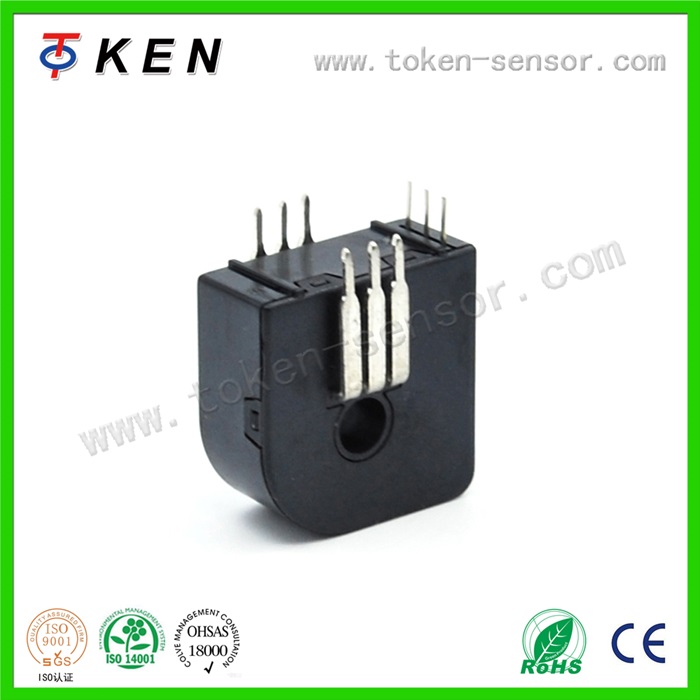

TBC-DHS52 Multi-range Closed Loop Hall Effect Current Sensor

TBC-DHS52 Multi-range Closed Loop Hall Effect Current Sensor

TBC-DHS52 series current sensor provides accurate electronic measurement of DC, AC or pulsed currents. This series current sensor has rated current input between ±6 and ±50A, meansure range upto ±55A. It has 0.5% accuracy, very small size, very reliable. Available for appearance customization.

Technology :
Closed loop Hall effect
Max. Nominal Value :
±50A
Max. Measuring Range :
±55A
Output Signal :
±2.0V
Supply Voltage :
+5±5%
Accuracy :
0.5%
Op. Temperature :
-40 °C / 105 °C

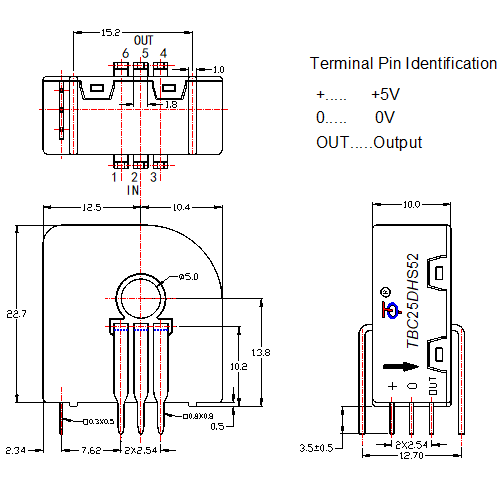

Mounting :
Aperture Φ5.0mm
Weight :
10g
MOQ :
100

Inquiry now
